12-01-2023
Great
This printer was good to go right out the box and assembly was super easy no problem and the only problem I have now is trying to find a place to put this beast….this review is for mingda magician pro
Shipping & Returns: Free Shipping. All The Time.
|
Auto-Leveling
One touch smart Auto Leveing
Huge Building Size
400*400*400mm |
|
Fast Assembly
Modular structure
Built-in PSU
PSU build-in a closed type, without exposure, which is more secure. |
Innovator of Auto-Leveling
MINGDA self-developed Auto-Leveling function can automatically compensate the hot bed unevenness. Leveling and printing can be completed with one button, simple operation and great user experience.
Unlock Unlimited Creativity
The size increased again, reaching to 400*400*400mm. Extra-large size for thought running wild.

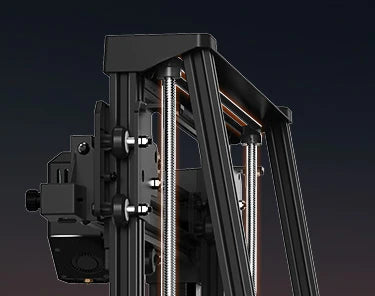

Smooth & Stable Operation
Double thread Z-axis moving parts to reduce printing wobbles
User-friendly Touch Screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.
Get Started Quickly
Modular design allows the printer to be assembled only in 5 minutes, which is very easy to use.
Ultra-Silent Printing
Ultra-quiet mechanical structure
Filament Runout Detection
Equipped with a filament runout sensor, it can monitor the supply of filament intelligently. If your printer runs out of filament, it will automatically stop without losing your printing progress.
Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.
Double Gears Direct Extrusion
Conveying material uniform without winding
Resume Printing Function
No need to worry about sudden power failure.
Newly Upgraded Chip of Brand Core
High-speed computing; high-performance, 32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction，memory protection unit
Stepping Drive - Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing
Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.
Multi Connection
Support SD card, USB and USB-C, supports online printing
Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.
Specs
Technical Specifications
● Print size: 40×40×40cm (15.7"×15.7"×15.7")
● Calibration: Self-developed Automatic Leveling, 36 Points
● Filament diameter: 1.75 mm
● Printing material: PLA / ABS / PETG & TPU
● Nozzle size: 0.4mm default, wide range of other nozzles supported
● Extuder: Direct Drive,Double Gears
● Filament run-out detection: Support
● Resume Printing: Support
● Tool Box: Yes
● Max nozzle temperature: 260 °C/500 °F
● Max heatbed temperature: 110 °C/230 °F
● Average speed: 8-10 cm/s,3.1-3.9in./s
● Control panel: 3.5 inch colorful LCD touch screen
● Print interface: SD Card,U Disk,USB-C
● Z-axis: Double threaded rod with synchronous belt
● Machine Weight: 14.5kg
● Machine Dimension: 65x58.6x67.5cm / 25.5*23.0*26.5in(X×Y×Z)
Parts List
Filament
|
User manual
|
Filament holder
|
Allen wrench
|
M5*8 (2pcs)
|
M5*12 (6pcs)
|
SD card
|
Teflon tube
|
Nozzle
|
Power cable
|
Wrench
|
M3*8 (2pcs)
|
